//名稱：模擬自動車庫
//電路原理：P86--P87
//作者：李春起
//版本：CARLIB.ASM-V0.0
//編寫時間:2010.11.01
//修訂日志:
INTER EQU P3.3//駛入
LEAVE EQU P3.2//駛離
IN    EQU P1.6//存入
OUT   EQU P1.7//取出
  ORG 0000H
  JMP MAIN
//  ORG 000BH
//  JMP T00
  ORG 0030H
MAIN:MOV TMOD,#01H
     MOV TH0,#3CH
  MOV TL0,#0B0H
  SETB TR0
  SETB EA
  SETB ET0
  MOV 20H,#0FFH //車位狀態初始化
  MOV 21H,#0FFH//請求車位
LOOP://ACALL DELAY2S
     //CLR P2.4//初始態平板車位置
  SETB P2.0
     SETB P2.1
  SETB P2.2
K1:  JB INTER,K2//不等0轉移
     JNB  INTER,$//等待放開
  CLR P2.4//指示有車待入庫
K2:  JB LEAVE,K3
     JNB LEAVE,$
  SETB P2.4
K3:  JB IN,K4
     JNB IN,$
  CLR P2.4
  CLR P2.1//選擇存入
  SETB P2.0
  JMP K5
K4:  JB OUT,K1
     JNB OUT,$
  CLR P2.0
  SETB P2.1
  JMP K6

K5: SETB P2.2
KA1:JB OUT,KA2
 JMP K1
    JB P1.0,KA2
    JNB P1.0,$
 JNB P0.0,KA2
 CLR P2.2
 MOV 20H,#0FEH
 JMP KENT
KA2:JB P1.1,KA3
    JNB P1.1,$
 JNB P0.1,KA3//
    CLR P2.2
 MOV 20H,#0FDH
 JMP KENT
KA3:JB P1.2,KA4
    JNB P1.2,$
 JNB P0.2,KA4
 CLR P2.2
 MOV 20H,#0FBH
 JMP KENT
KA4:JB P1.3,KA5
    JNB P1.3,$
 JNB P0.3,KA5
 CLR P2.2
 MOV 20H,#0F7H
 JMP KENT
KA5:JB P1.4,KA6
    JNB P1.4,$
 JNB P0.4,KA6
 CLR P2.2
 MOV 20H,#0EFH
 JMP KENT
KA6:JB P1.5,KENT
    JNB P1.5,$
 JNB P0.5,KENT
 CLR P2.2
 MOV 20H,#0DFH

KENT:
     JB P3.0,KA1
  JNB P3.0,$
  JB P2.2,KA1
  ACALL DELAY2S
  SETB P2.4
  CLR P2.5
  ACALL DELAY2S
  MOV A,20H
  CJNE A,#0FEH,NA1
  SETB P2.5
  CLR P0.0
  ACALL DELAY2S
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
  JMP LOOP

NA1: CJNE A,#0F7H,NA2
     SETB P2.5
  CLR P0.3
  ACALL DELAY2S
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
  JMP LOOP
NA2: SETB P2.5
  CLR P2.6
  ACALL DELAY2S
  CJNE A,#0FDH,NA3
  SETB P2.6
  CLR P0.1
  ACALL DELAY2S
  CLR P2.6
  ACALL DELAY2S
  SETB P2.6
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
     JMP LOOP
NA3: CJNE A,#0EFH,NA4
  SETB P2.6
  CLR P0.4
  ACALL DELAY2S
  CLR P2.6
  ACALL DELAY2S
  SETB P2.6
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
  JMP LOOP
NA4: SETB P2.6
     CLR P2.7
  ACALL DELAY2S
     CJNE A,#0FBH,NA5
  SETB P2.7
  CLR P0.2
  ACALL DELAY2S
  CLR P2.7
  ACALL DELAY2S
  SETB P2.7
  CLR P2.6
  ACALL DELAY2S
  SETB P2.6
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
  JMP LOOP
NA5: CJNE A,#0DFH,NA6
     SETB P2.7
  CLR P0.5
  ACALL DELAY2S
  CLR P2.7
  ACALL DELAY2S
  SETB P2.7
  CLR P2.6
  ACALL DELAY2S
  SETB P2.6
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
NA6: JMP LOOP
//============取車===========================
K6:  SETB P2.2
KB1:JB IN,KB2
 JMP K1
    JB P1.0,KB2
    JNB P1.0,$
 JB P0.0,KB2
 CLR P2.2
 MOV 20H,#0FEH
 JMP KENV
KB2:JB P1.1,KB3
    JNB P1.1,$
 JB P0.1,KB3//
    CLR P2.2
 MOV 20H,#0FDH
 JMP KENV
KB3:JB P1.2,KB4
    JNB P1.2,$
 JB P0.2,KB4
 CLR P2.2
 MOV 20H,#0FBH
 JMP KENV
KB4:JB P1.3,KB5
    JNB P1.3,$
 JB P0.3,KB5
 CLR P2.2
 MOV 20H,#0F7H
 JMP KENV
KB5:JB P1.4,KB6
    JNB P1.4,$
 JB P0.4,KB6
 CLR P2.2
 MOV 20H,#0EFH
 JMP KENV
KB6:JB P1.5,KENV
    JNB P1.5,$
 JB P0.5,KENV
 CLR P2.2
 MOV 20H,#0DFH

KENV:
     JB P3.0,KB1
  JNB P3.0,$
  JB P2.2,KB1
  ACALL DELAY2S
  SETB P2.4
  CLR P2.5
  ACALL DELAY2S
  MOV A,20H
  CJNE A,#0FEH,NB1
  SETB P2.5
//  CLR P0.0
  ACALL DELAY2S
  SETB P0.0
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
  JMP LOOP
NB1: CJNE A,#0F7H,NB2
     SETB P2.5
//  CLR P0.3
  ACALL DELAY2S
  SETB P0.3
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
  JMP LOOP
NB2: SETB P2.5
  CLR P2.6
  ACALL DELAY2S
  CJNE A,#0FDH,NB3
  SETB P2.6
//  CLR P0.1
  ACALL DELAY2S
  SETB P0.1
  CLR P2.6
  ACALL DELAY2S
  SETB P2.6
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
     JMP LOOP
NB3: CJNE A,#0EFH,NB4
  SETB P2.6
 // CLR P0.4
  ACALL DELAY2S
  SETB P0.4
  CLR P2.6
  ACALL DELAY2S
  SETB P2.6
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
  JMP LOOP
NB4: SETB P2.6
     CLR P2.7
  ACALL DELAY2S
     CJNE A,#0FBH,NB5
  SETB P2.7
 // CLR P0.2
  ACALL DELAY2S
  SETB P0.2
  CLR P2.7
  ACALL DELAY2S
  SETB P2.7
  CLR P2.6
  ACALL DELAY2S
  SETB P2.6
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
  JMP LOOP
NB5: CJNE A,#0DFH,NB6
     SETB P2.7
//  CLR P0.5
  ACALL DELAY2S
  SETB P0.5
  CLR P2.7
  ACALL DELAY2S
  SETB P2.7
  CLR P2.6
  ACALL DELAY2S
  SETB P2.6
  CLR P2.5
  ACALL DELAY2S
  SETB P2.5
  CLR P2.4
NB6: JMP LOOP


DELAY2S:MOV R1,#8
DELA1:MOV R2,#255
DELA2:MOV R3,#100
DELA3:NOP
      NOP
   DJNZ R3,DELA3
   DJNZ R2,DELA2
   DJNZ R1,DELA1
   RET

     END

完整匯編程序下載地址: http://www.izizhuan.cn/f/ck.rar

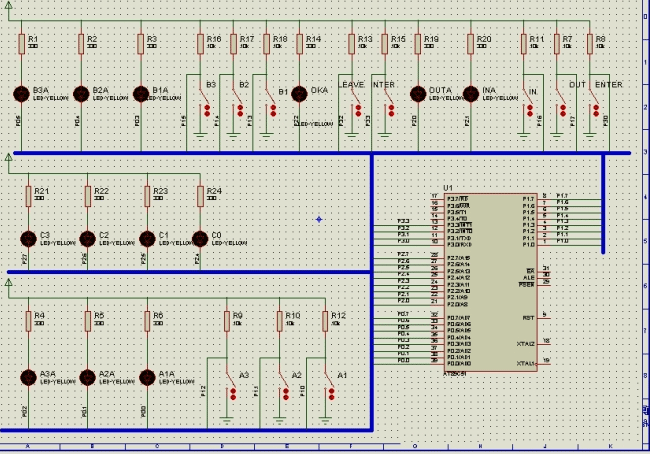

電路圖：
